Unilin (Xtratherm) XT/TL Thermal Liner Insulated PIR Plasterboard


Thin-R XT/TL Thermal Liner is Xtratherm PIR core with a composite kraft facing bonded to 12.5mm tapered edge plasterboard. The kraft facing on both sides incorporates a vapour control layer to help reduce the risk of condensation. It is designed to provide high levels of thermal insulation and drylining in one operation.

Certification:

  • ISO9001 - Quality Management Systems
  • ISO14001 - Environmental Management
  • A+ rating on BRE Green Guide
  • BBA Certification No. 04/4130


Read more Read less

Key points
  • Insulation and Drylining in one application.
  • Effective Vapour Control Layer
  • Reduced Insulation Thickness
  • Zero ODP and GWP < 5.

Specification
  • Thickness: 32.5mm, 37.5mm, 50.5mm, 52.5mm, 62.5mm, 72.5mm, 82.5mm, 92.5mm (25mm PIR 12.5mm Plasterboard)
  • Width: 1200mm
  • Length: 2400mm
  • Board coverage: 2.88 m²
  • Board Profile: Tapered Edge - Plasterboard
  • Square Edge - PIR
  • Thermal Conductivity: 0.022 W/mK (PIR Only)
  • Fire Rating: Euroclass B-s1, d0

Application

Suitable for New Build and Refurbishment Projects.

Suitable for Walls, Floors and Roofs.

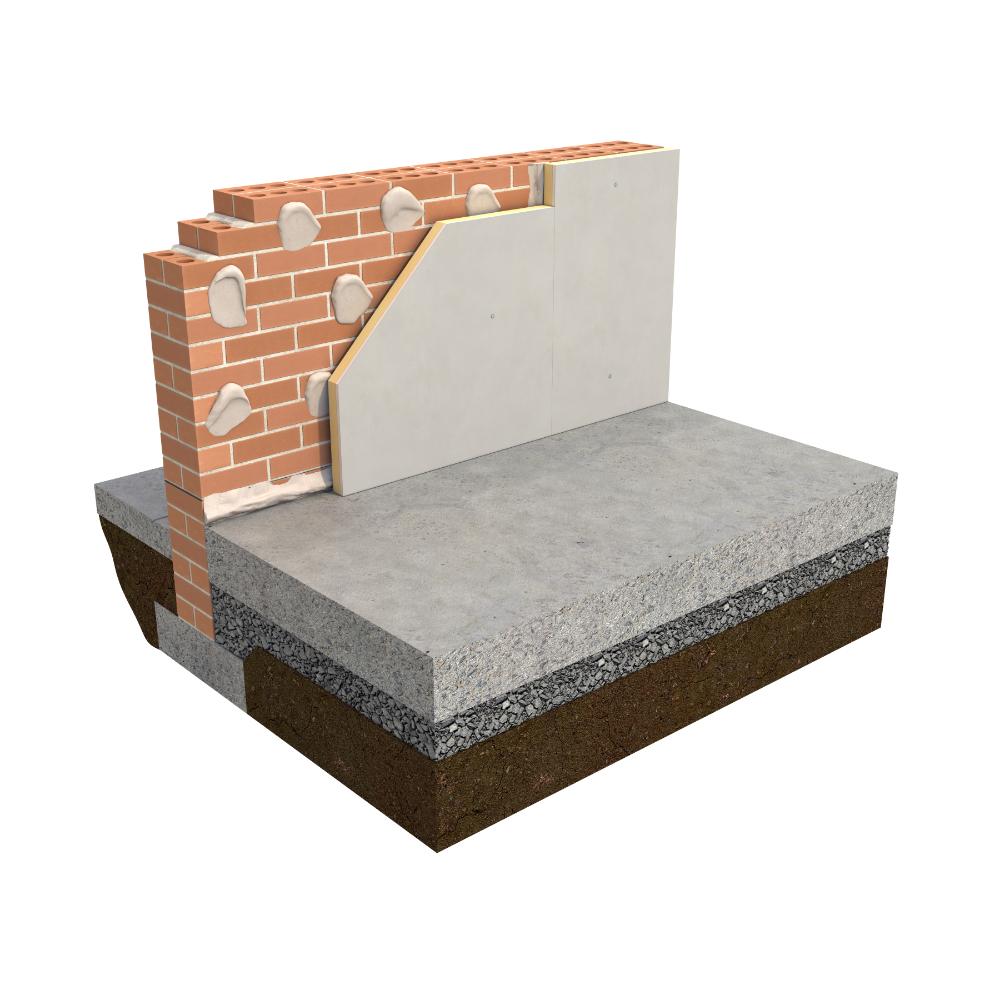

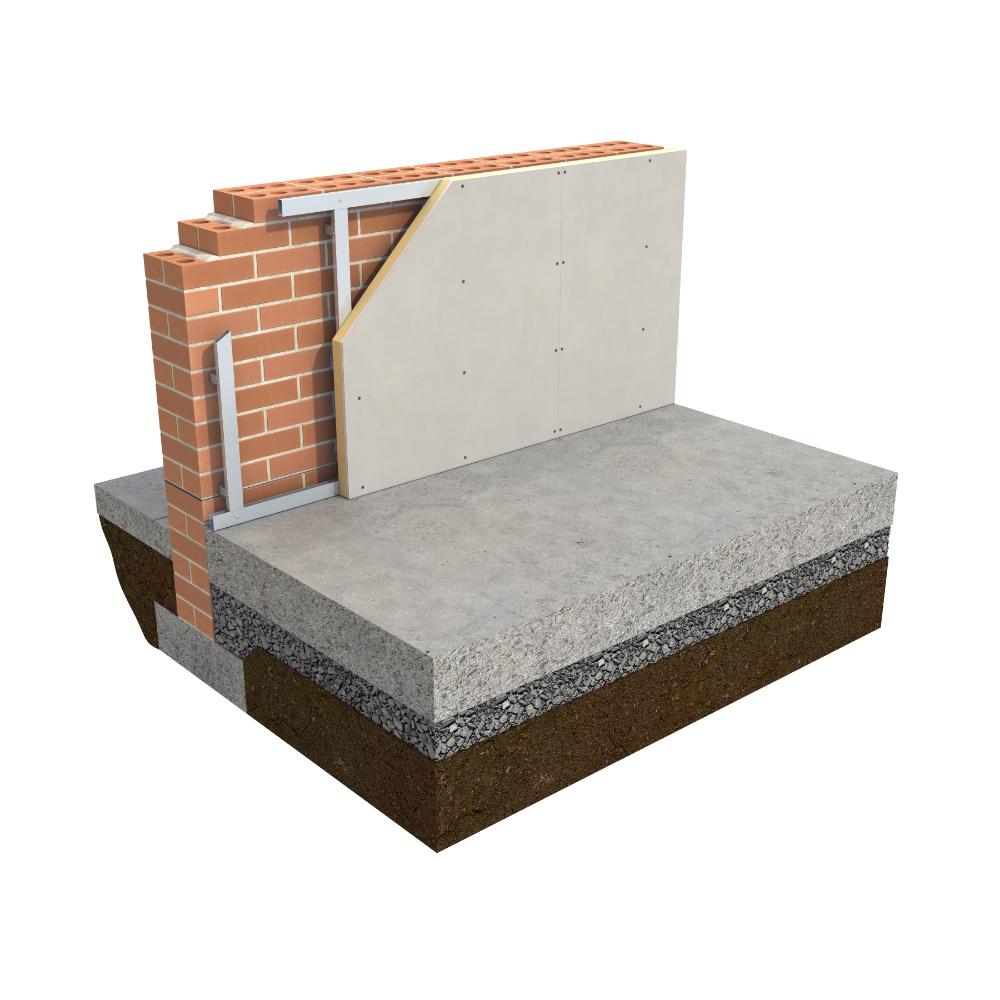

Suitable for Mechanical Fixing or Dot & Dab.

Unilin (Xtratherm) XT/TL Thermal Liner Insulated PIR Plasterboard
Unilin (Xtratherm) XT/TL Thermal Liner Insulated PIR Plasterboard

Thickness: 32.5mm

Unilin (Xtratherm) XT/TL Thermal Liner Insulated PIR Plasterboard
Unilin (Xtratherm) XT/TL Thermal Liner Insulated PIR Plasterboard
Unilin (Xtratherm) XT/TL Thermal Liner Insulated PIR Plasterboard

Best Seller

Unilin (Xtratherm) Safe-R Phenolic Foam Board

Safe-R Phenolic Foam board is a superior performance phenolic insulation with an enhanced fire classification. It is faced with a low emissivity foil facings on both sides.

Datasheets, Guides and Documents

We haven't added a Technical Datasheet yet. Get in touch if you require one.
