Unilin (Xtratherm) Thin-R PIR Board
Unilin (Xtratherm) Thin-R PIR Board
Unilin (Xtratherm) Thin-R PIR Board
Unilin (Xtratherm) Thin-R PIR Board
chevron_left
chevron_right

Unilin (Xtratherm) Thin-R PIR Board


Thin-R PIR is a closed-cell rigid high-performance foil faced Polyisocyanurate (PIR) insulation.

Certification:

ISO9001 - Quality Management Systems
ISO14001 - Environmental Management
A+ rating on BRE Green Guide


Read more Read less

Key points
  • High Thermal Performance.
  • Low emissivity foil facings.
  • Manufactured without the use of CFC's or HCFC's, has Zero Ozone Depletion Potential (ODP).
  • Closed cell structure - moisture resistant.

Specification
  • Thickness: 15mm, 20mm, 25mm,40mm, 50mm, 60mm, 70mm, 75mm, 80mm, 100mm, 110mm, 120mm, 125mm, 130mm, 140mm, 150mm, 165mm
  • Width: 1200mm
  • Length: 2400mm
  • Board coverage: 2.88 m²
  • Board Profile: Square Edge
  • Density: 32kg/m³
  • Thermal Conductivity: 0.022 W/mK
  • Fire Rating: NPD (Class F) tested to BS EN 13501-1
  • Compressive Strength: >150kPa

Application

Suitable for New Build and Refurbishment Projects.

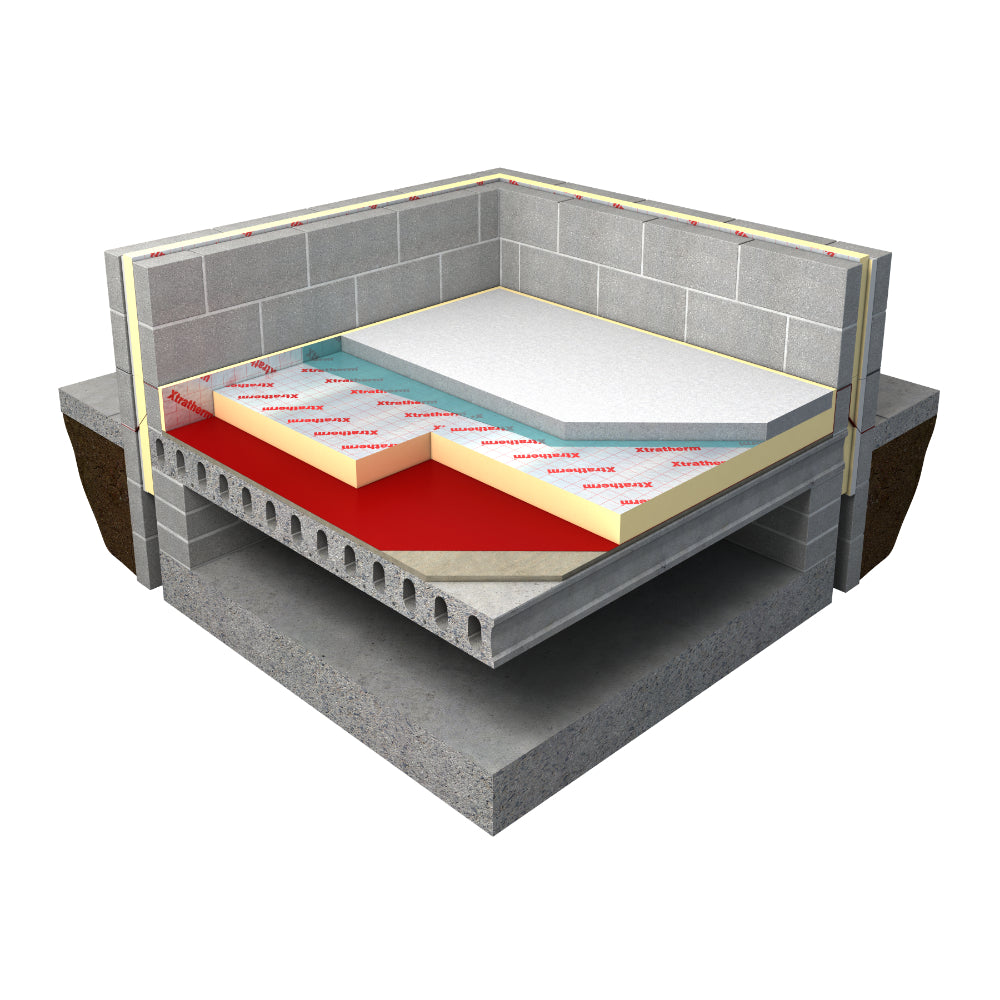

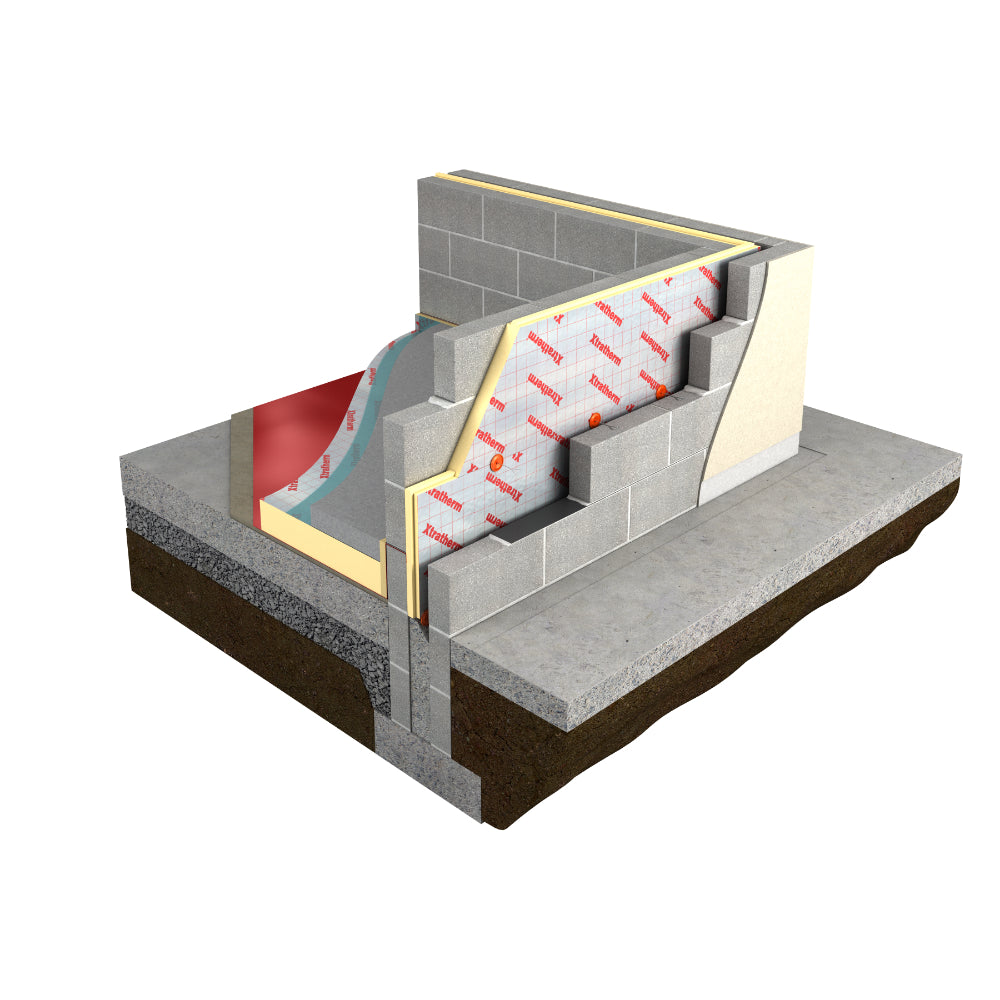

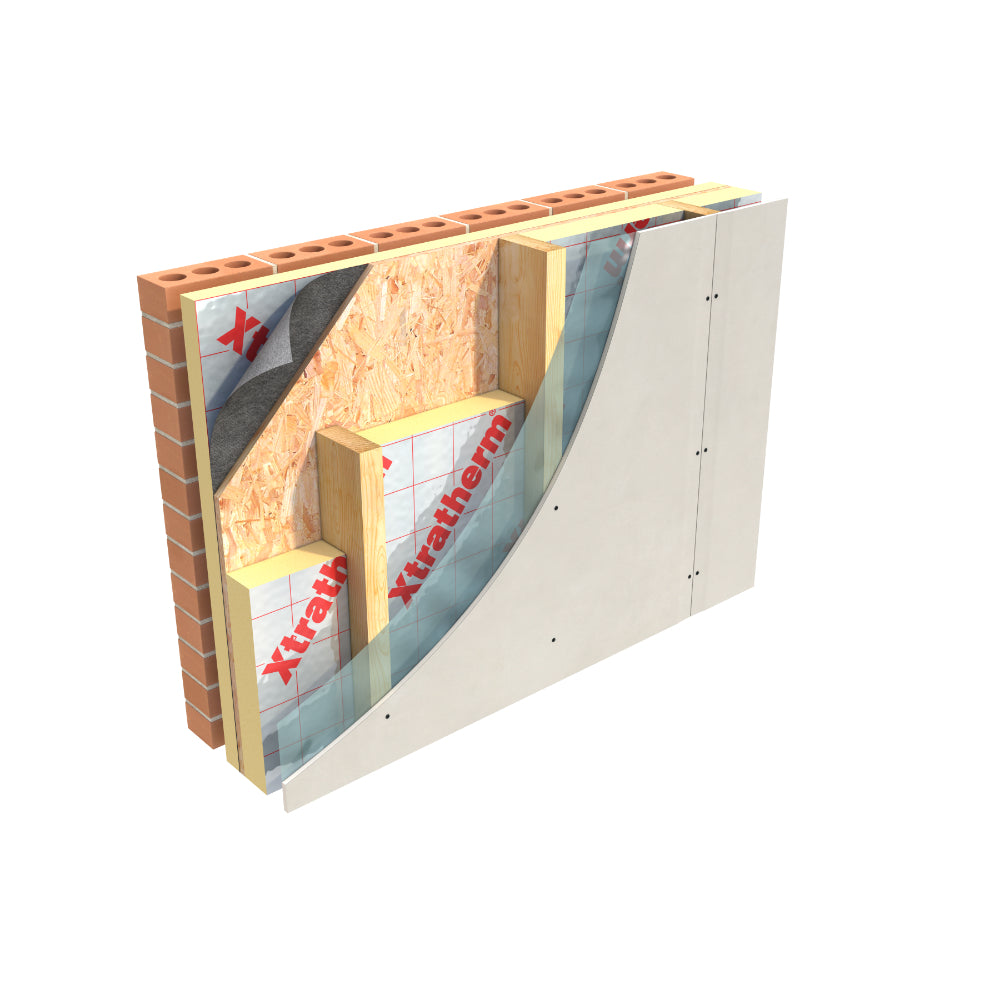

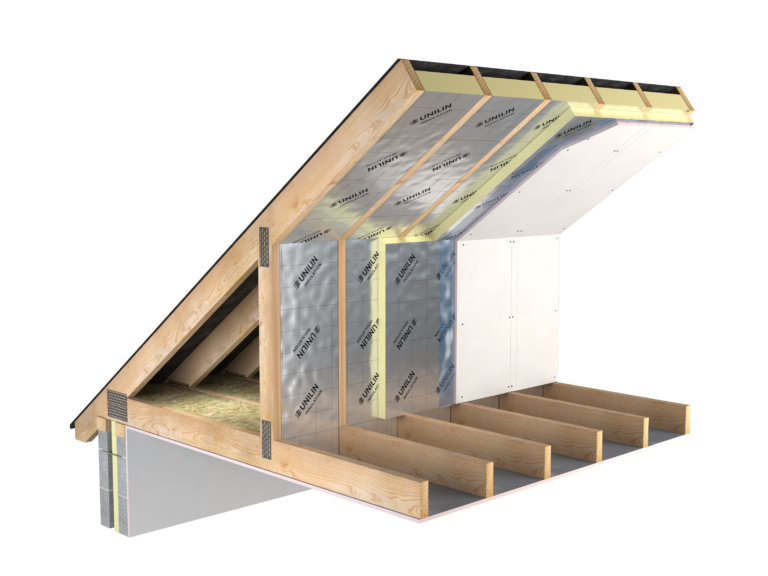

For use in Walls, Floors and Roofing.

Unilin (Xtratherm) Thin-R PIR Board
Unilin (Xtratherm) Thin-R PIR Board

Thickness: 15mm

Unilin (Xtratherm) Thin-R PIR Board
Unilin (Xtratherm) Thin-R PIR Board
Unilin (Xtratherm) Thin-R PIR Board
Unilin (Xtratherm) Thin-R PIR Board

Best Seller

Unilin (Xtratherm) Safe-R Phenolic Foam Board

Safe-R Phenolic Foam board is a superior performance phenolic insulation with an enhanced fire classification. It is faced with a low emissivity foil facings on both sides.

Datasheets, Guides and Documents

We haven't added a Technical Datasheet yet. Get in touch if you require one.
