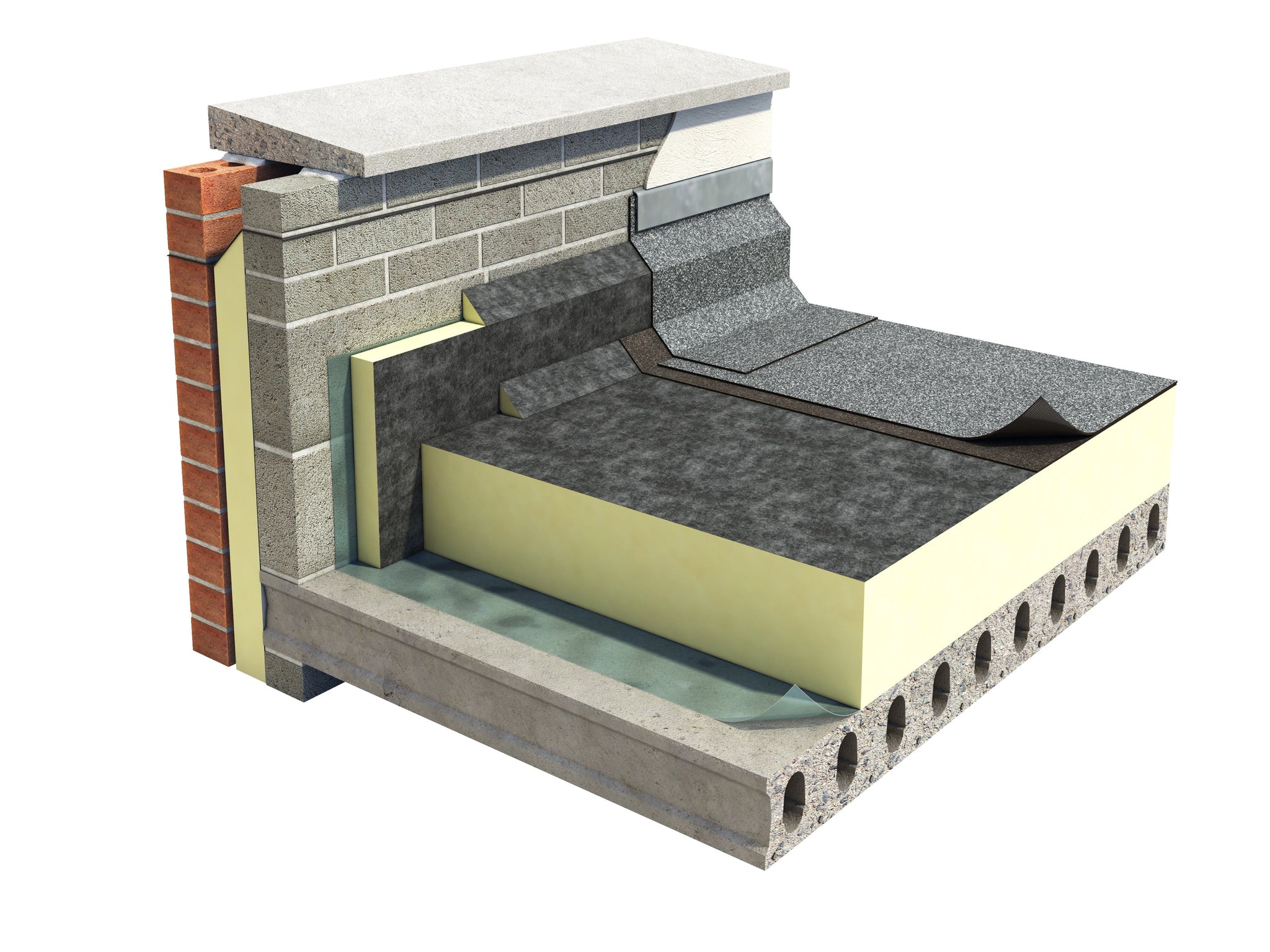

Unilin (Xtratherm) Thin-R FR/BGM Flat Roof

Unilin (Xtratherm) Thin-R FR/BGM Flat Roof

FR/BGM is faced with a polypropylene fleece finished bitumen glass working surface and a mineral glass facing to the underside. FR/BGM is part of Xtratherm’s comprehensive range of high-performance flat roof boards providing total solutions for flat roof projects.

Certification:

  • ISO9001 - Quality Management Systems
  • ISO14001 - Environmental Management
  • OHSAS18001 - Occupational Health & Safety
  • A rating on BRE Green Guide
Read more Read less

Key points
  • High Thermal Performance.
  • Fleece finished bitumen/glass fibre facings.
  • Compatible with most bituminous based roofing systems.
  • Manufactured without the use of CFC's or HCFC's, has Zero Ozone Depletion Potential (ODP).

Specification
  • Thickness: 25mm, 30mm, 50mm, 60mm, 70mm, 80mm, 90mm, 100mm, 120mm, 140mm, 150mm
  • Width: 1200mm
  • Length: 600mm
  • Board coverage: 0.72m²
  • Board Profile: Square Edge
  • Density: 32kg/m³
  • Thermal Conductivity: 0.024 - 0.027 W/mK
  • Typical U-Values: W/m²K : 80mm - 0.29, 90mm - 026, 100mm- 0.24, 120mm - 0.20
  • Compressive Strength: 150kPa @ 10% Compression

Application

Suitable for New Build and Refurbishment Projects.

Unilin (Xtratherm) Thin-R FR/BGM Flat Roof
Unilin (Xtratherm) Thin-R FR/BGM Flat Roof

Thickness: 25mm

Unilin (Xtratherm) Thin-R FR/BGM Flat Roof

Best Seller

Unilin (Xtratherm) Safe-R Phenolic Foam Board

Safe-R Phenolic Foam board is a superior performance phenolic insulation with an enhanced fire classification. It is faced with a low emissivity foil facings on both sides.

Datasheets, Guides and Documents

We haven't added a Technical Datasheet yet. Get in touch if you require one.
